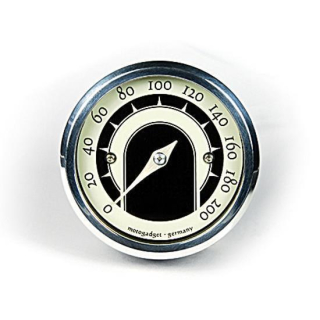

motogadget Analog Tacho motoscope tiny speedster, polierter Ring, 361-806
Das mst speedster mit ABE ist ein kleiner, analoger Tacho im attraktiven Retrodesign.
Technisch ist das Instrument mit dem motoscope tiny identisch. Das Ziffernblatt ist an das Streamline-Design der Vierziger und Fünfiger Jahre angelehnt. Passend dazu ist es in einem wärmeren Weiss gehalten. Der Zeiger ist in seiner Form auf das Ziffernblatt abgestimmt und aus gebürstetem Edelstahl gefertigt und der Schraubring ist auch hier poliert oder schwarz eloxiert erhältlich.
Technische Daten u. Funktionen
Einbaudurchmesser: 49 mm
Gewicht: ca. 96 g
Befestigung: 2 x M3 Gewindebuchse
Stromaufnahme im Betrieb: ca. 200 mA (belastungsabhängig)
Betriebsspannung: 9 V - 15 V
Betriebstemperatur: -20° +80°C
Tachometer analog (Zeiger) = 0 – 200 km/h oder mph
Tachometer numerisch (LED-Display) = 200 – 999 km/h oder mph
maximale Geschwindigkeit = 0 – 999 km/h oder mph
Bordspannung = 9 – 15 V
Uhrzeit = 00:00 – 23:59
Tageskilometerzähler = 0 – 999,9 km oder mi
Gesamtkilometer (einstellbar) = bis 99 999 km oder mi
Kontrollleuchten = Blinker, Fernlicht, Neutral, Warnlampe
Lieferumfang: 1 Stück
Hinweis: Alle weiteren Eigenschaften und technischen Daten des Instruments entsprechen dem motoscope tiny.
The mst speedster with ABE is a small analog speedometer in an attractive retro design.
Technically the instrument is identical to the motoscope tiny. The dial is based on the Streamline design of the 1940s and 1950s. Matching it it is kept in a warmer white. The shape of the pointer is matched to the dial and is made of brushed stainless steel. The screw ring is also available polished or black anodized.
Technical data and functions
Installation diameter: 49 mm
Weight: approx. 96 g
Fastening: 2 x M3 threaded bush
Current consumption in operation: approx. 200 mA (load dependent)
Operating voltage: 9 V - 15 V
Operating temperature: -20° +80°C
Tachometer analog (pointer) = 0 200 km/h or mph
Tachometer numeric (LED display) = 200 999 km/h or mph
maximum speed = 0 999 km/h or mph
On-board voltage = 9 15 V
Time = 00:00 23:59
Daily odometer = 0 999,9 km or mi
Total mileage (adjustable) = up to 99 999 km or mi
Control lamps = turn signal, high beam, neutral, warning lamp
Scope supplied: 1 unit
Note: All other features and specifications of the instrument are the same as the motoscope tiny.
