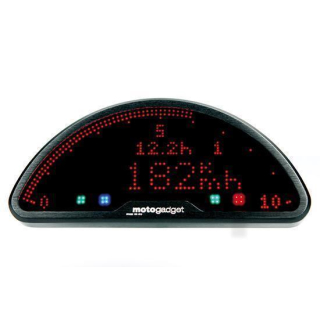

motogadget Tachometer, Motoscope pro Dashboard, 361-807
Das motoscope pro ist die neueste digitale Dashboard-Generation von motogadget. Das Instrument besitzt eine ABE und muss nicht eingetragen werden. Cutting edge Technologie macht ein ultraflaches Gehäusedesign möglich.
734 LEDs, gesteuert von einem 16bit Risc Prozessor, bilden die fast vollflächig selbstleuchtende Display-Matrix. Sie sorgt für eine optimale Ablesbarkeit - auch bei direktem Sonnenlicht. Eine automatische Helligkeitsanpassung ist selbstverständlich. Über ein analoges LED-Band mit Schleppzeigerfunktion wird die Drehzahl frei skalierbar angezeigt. Das Haupt- und Nebendisplay sind selbst konfigurierbar. Ein weiterer Displaybereich zeigt den eingelegten Gang an.
Vier Kontrollleuchten sind bereits integriert und können mit Hilfe der Displayanzeige für weit mehr Eingangssignale verwendet werden. Für die Anschlussverkabelung der Kontrollleuchten und/oder der Messeingänge wird zusätzlich die Breakout Box A oder B benötigt. Siehe oben Tab 'Breakout Boxes'. Das motoscope pro besitzt ein vollständiges CAN-Bus Interface und ist so für viele zukünftige Entwicklungen von Plug 'n Ride Lösungen vorbereitet. Siehe z.B. Breakout Box Triumph.
Das Dashboard kommuniziert über einen eigenen digitalen Eindrahtbus (mo.BUS) mit zusätzlichen Breakout-Boxen, die das Funktionsspektrum einfach erweitern. Somit ist das Dashboard extrem vielseitig und kann auf sehr viele Fahrzeuge und Anwendungen angepasst werden.
Das Aluminiumgehäuse ist aus dem Vollen gefräst, eloxiert und kann durch zwei rückseitige Gewindebuchsen einfach befestigt werden.
Technische Daten u. Funktionen:
Länge/Breite/Tiefe: 109 mm/ 47 mm/ 11 mm
Gewicht mit Kabel: ca. 100 g
Befestigung: 2 x M3 Gewindebuchse
Stromaufnahme im Betrieb: max. 200 mA (belastungsabhängig)
Stromaufnahme im Ruhezustand: 0.4 mA
Betriebsspannung: 9 V - 15 V
Betriebstemperatur: -20° +80°C
Drehzahlmesser (LED-Band) = 0 – 6, 8, 10, 12, 14, 16, 18 krpm (einstellbar)
Tachometer = 0 – 350 km/h o. mph
Tageskilometerzähler A & B = bis 999.9 km oder mi
Gesamtkilometer (einstellbar) = bis 250000 km oder mi
Betriebsstundenzähler/Service = 0 – 9999.5 h
Uhr = 23:59 h/min
Fahrtzeitanzeige = 0 – 99:59:59 h/min/s
Drehzahlmesser (auf LCD) = 0 – 20000 rpm
einstellbare Drehzahlwarnung (Schaltblitz) = 0 – 20000 rpm
Bordspannungsanzeige = 9 – 18 V
Unterspannungswarnung = Warnung wenn unter ca. 11V
Zeitmessung = 0 - 100 km/h o. 0 - 60 mph 0.00 – 30.59 sec.
momentane Beschleunigung = +/- 0.00 – 1.50 G
Durchschnittsgeschwindigkeit = 0 – 350 km/h o. mph
Maximalwert Geschwindigkeit = 0 – 350 km/h o. mph
Maximalwert Drehzahl = 0 – 20000 rpm
max. positive Beschleunigung = +1.50 G
max. negative Beschleunigung = - 1.50 G
Ganganzeige = N, Gang 1 - 6
grüne Kontroll-LED (mit Breakoutbox A/B) = Leerlauf (N)
grüne Kontroll-LED (mit Breakoutbox A/B) = Blinker links, rechts
blaue Kontroll-LED (mit Breakoutbox A/B) = Fernlicht
rote Warn-LED (mit Breakoutbox A/B) = verschiedene Warnfunktionen
Benzin/Reserve (mit Breakoutbox A/B) = 0 - 100% mit Low-Warnung
Lufttemperatur* (mit Breakoutbox B) = -20 - 80 °C / -4 - 176 °F mit High-/Low-Warnung
Wassertemperatur* (mit Breakoutbox B) = 40 - 120 °C / 104 - 248 °F mit High-/Low-Warnung
Öltemperatur* (mit Breakoutbox B) = 40 - 150 °C / 104 - 302 °F mit High-/Low-Warnung
Öldruck* (mit Breakoutbox B) = 0,5 - 8 bar / 0 - 116 psi mit High-/Low-Warnung
Lieferumfang:
motoscope pro mit ca. 70 cm Anschlusskabel
Tachosensor M5 x 0,5 Feingewinde (Edelstahl, IP67) mit ca. 150 cm Anschlusskabel
2 Magnete
10 x Kabelendverbinder
fliegende Sicherung
2 Edelstahl Befestigungsschrauben
ausführliche Anbau- und Bedienungsanleitung.
Hinweis:
- Touch-Sensor ist nicht mehr enthalten.
- Bitte bestellen Sie die Breakout Box zum Anschluss von Kontrollleuchten (siehe Breakout Box Std.) oder an digitale Bus-Systeme (Triumph, H-D) zusätzlich. Für BMW R9T wird keine Breakout Box benötigt.
The motoscope pro is the latest digital dashboard generation from motogadget. The instrument has an ABE and does not need to be registered. Cutting edge technology makes an ultra-flat package design possible.
734 LEDs, controlled by a 16bit Risc processor, form the almost completely self-illuminating display matrix. It ensures optimum readability - even in direct sunlight. Automatic brightness adjustment is a matter of course. An analog LED band with drag pointer function indicates the speed in a freely scalable manner. The main and secondary displays are self-configurable. A further display area shows the engaged gear.
Four indicator lights are already integrated and can be used for far more input signals with the help of the display indicator. The breakout box A or B is additionally required for the connection wiring of the control lamps and/or the measurement inputs. See tab 'Breakout Boxes' above. The motoscope pro has a complete CAN bus interface and is thus prepared for many future developments of Plug 'n Ride solutions. See e.g. Breakout Box Triumph.
The dashboard communicates via its own digital single-wire bus (mo.BUS) with additional breakout boxes that simply extend the range of functions. Therefore the dashboard is extremely versatile and can be adapted to many vehicles and applications.
The aluminium housing is milled from solid material, anodized and can be easily fixed by two rear threaded bushes.
Technical data and functions:
Length/Width/Depth: 109 mm/ 47 mm/ 11 mm
Weight with cable: approx. 100 g
Fastening: 2 x M3 threaded bushing
Current consumption in operation: max. 200 mA (load-dependent)
Current consumption in idle state: 0.4 mA
Operating voltage: 9 V - 15 V
Operating temperature: -20° +80°C
Tachometer (LED band) = 0 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
Tachometer = 0 350 km/h o. mph
Daily mileage counter A & B = up to 999.9 km or mi
Total mileage (adjustable) = up to 250000 km or mi
Operating hours counter/Service = 0 9999.5 h
Clock = 23:59 h/min
Driving time display = 0 99:59:59 h/min/s
Tachometer (on LCD) = 0 20000 rpm
Adjustable speed warning (switching flash) = 0 20000 rpm
On-board voltage display = 9 18 V
Undervoltage warning = Warning if under approx. 11V
Time measurement = 0 - 100 km/h o. 0 - 60 mph 0.00 30.59 sec.
Momentary acceleration = +/- 0.00 1.50 G
Average speed = 0 350 km/h o. mph
Maximum value speed = 0 350 km/h o. mph
Max. value speed = 0 20000 rpm
max. positive acceleration = +1.50 G
max. negative acceleration = - 1.50 G
Gear indicator = N, gear 1 - 6
green control LED (with breakout box A/B) = idle (N)
green control LED (with breakout box A/B) = turn signal left, right
blue control LED (with breakoutbox A/B) = high beam
red warning LED (with breakoutbox A/B) = various warning functions
petrol/reserve (with breakoutbox A/B) = 0 - 100% with low warning
air temperature* (with breakoutbox B) = -20 - 80 °C / - -4 - 176 °F with high/low warning
water temperature* (with breakout box B) = 40 - 120 °C / 104 - 248 °F with high/low warning
oil temperature* (with breakout box B) = 40 - 150 °C / 104 - 302 °F with high/low warning
oil pressure* (with breakout box B) = 0,5 - 8 bar / 0 - 116 psi with high/low warning
scope of supply:
motoscope pro with ca. 70 cm connection cable
Tachometer sensor M5 x 0.5 fine thread (stainless steel, IP67) with approx. 150 cm connection cable
2 magnets
10 x cable end connectors
flying fuse
2 stainless steel fixing screws
detailed mounting and operating instructions.
Note:
- Touch sensor is no longer included.
- Please order the Breakout Box for connecting control lamps (see Breakout Box Std.) or to digital bus systems (Triumph, H-D) additionally. No breakout box required for BMW R9T.
